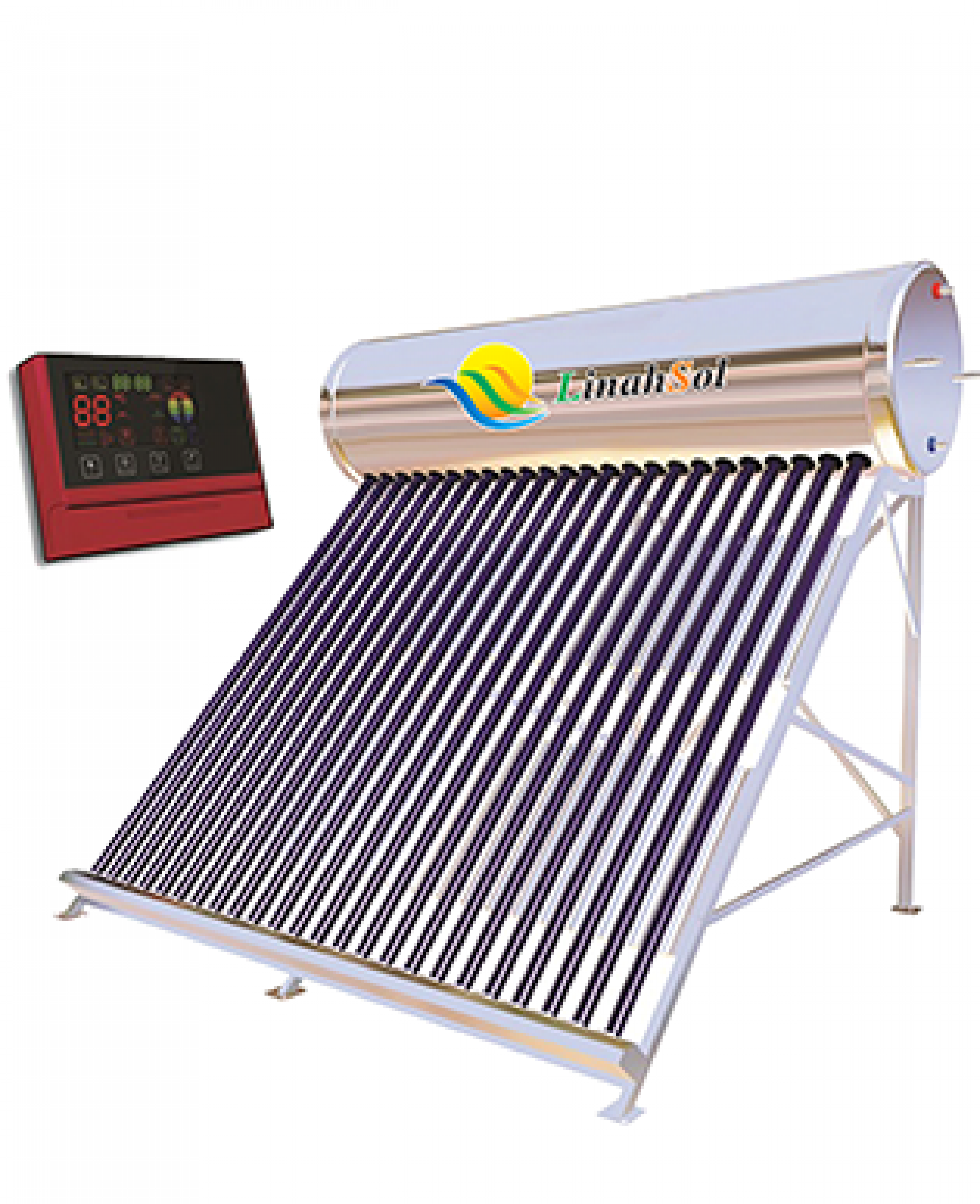

High Pressure Solar Water Heater



The solar heater is environmentally and family friendly , with high efficiency and free from hazards, problems and polluting emissions to the environment .



Installation types :      Pitched roof ,  flat roof  .

Advantage and disadvantage :

It is distinguished by its cylinder made of stainless steel that resistant to corrosion and calcification, and the insulation layer made of compressed polyurethane surrounding the cylinder with a thickness of 5 cm to maintain the temperature up to 72 hours and its outer cylinder is made of weather-resistant steel .

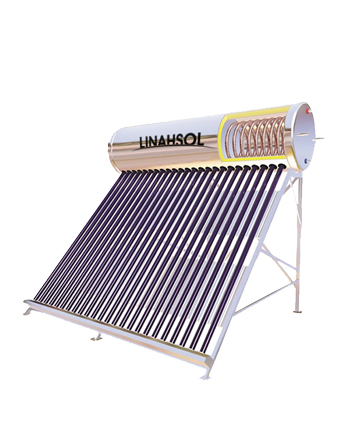

The internal heat exchanger ( the coil ) made of stainless steel 316 maintains the natural water pressure coming from the public network without problems or the need for external additives such as (pumps or pressure regulators ) so that it maintains the pressure balance between hot and cold water , which gives us easiness and comfort in use.







The heater is controlled by the smart control inside the house,

it gives us the temperature and the amount of water inside

the solar heater and full control of the electric heater

(the back-up system) inside the cylinder through three programs

we choose according to our needs.



















Pressurized  vacuum tube  solar water heater :



Vacuum tube (solar collector) consists of two tubes made of very pure glass, 1.6 mm thick. The outer tube is clear , allowing sunlight to infiltrate easily and with a very low reflection rate, because it is cylindrical in shape and therefore the sun's rays fall vertical on the tube at all times.



The inner tube is coated with three electrostatic layers, the first layer is metal , its function is to prevent the reflection of infrared rays entering the tube, the second layer is a layer of porcelain that prevents the reflection of solar rays entering the tube, and the third layer is a carbon film, its function is to absorb sunlight .



The volume between the two tubes is emptied of air, which forms a high-quality insulating layer that ensures the high performance of the tube so that it does not lose the heat absorbed by the sun's rays. This means that the evacuated tubes can work with high performance.





Data sheet  :

                            Pararmeter Table                                                                                                                  specification

DS/DP 1800/58

Model

30

24

18

Tube

Tubes NO.

4.28

3.54

2.62

m2

Collector Area

58*1800

mm

Diameter & Length of tube

1.67

m

Effective length of tube

More than 94%

mm

Radiation absorption ratio

less than 7%



Reflection ratio

45

degree

Tilt angle

300

240

180

liter

Tank Capacity

475

mm

Tank Diameter

50 ~ 60

mm

Tank Thickness

1/2"

inch

Ventilation tube diameter

1"

inch

Electric heater diameter

1/2"

inch

Water tube diameter

132

106

82

KG

Gross weight





Models

vacuum tuber

Frame angle

capacity Liter/day/°c

Effective collector area M2

size (mm)

A

B

C

D

E

DLC-210

Φ58*1800*21Pc

45°/38° / 25°

210

2.6

1835

1635

1550

1650

2060

DLC-240

Φ58*1800*24Pc

45°/38° / 25°

240

2.98

2060

1860

1550

1650

2060

DLC-300

Φ58*1800*30Pc

45°/38° / 25°

300

3.73

2510

2310

1550

1650

2060

DLC-360

Φ58*1800*38Pc

45°/38° / 25°

360

4.48

2960

2760

1550

1650

2060
