Heat pipe collector
Model: HCM
Features: Heat pipe collector

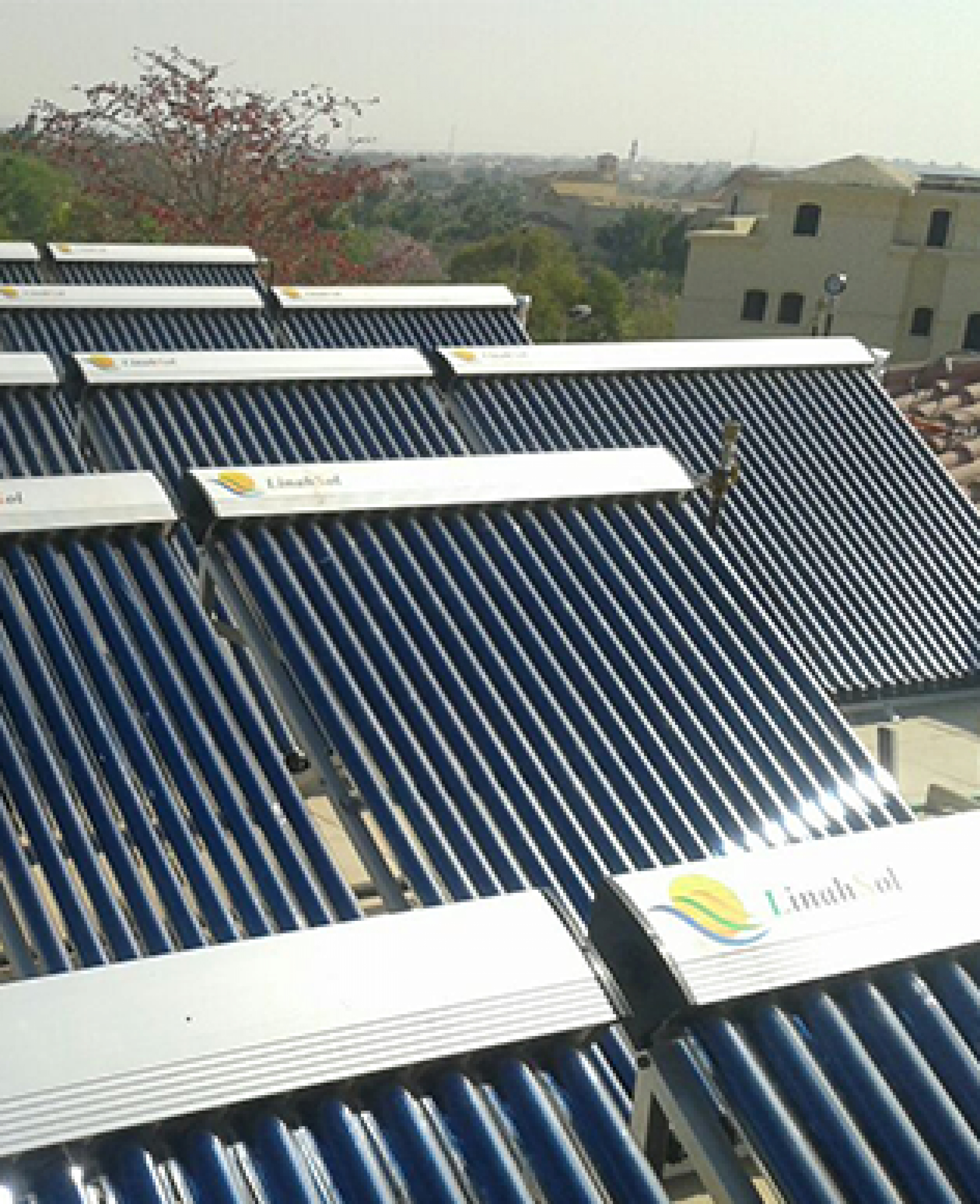

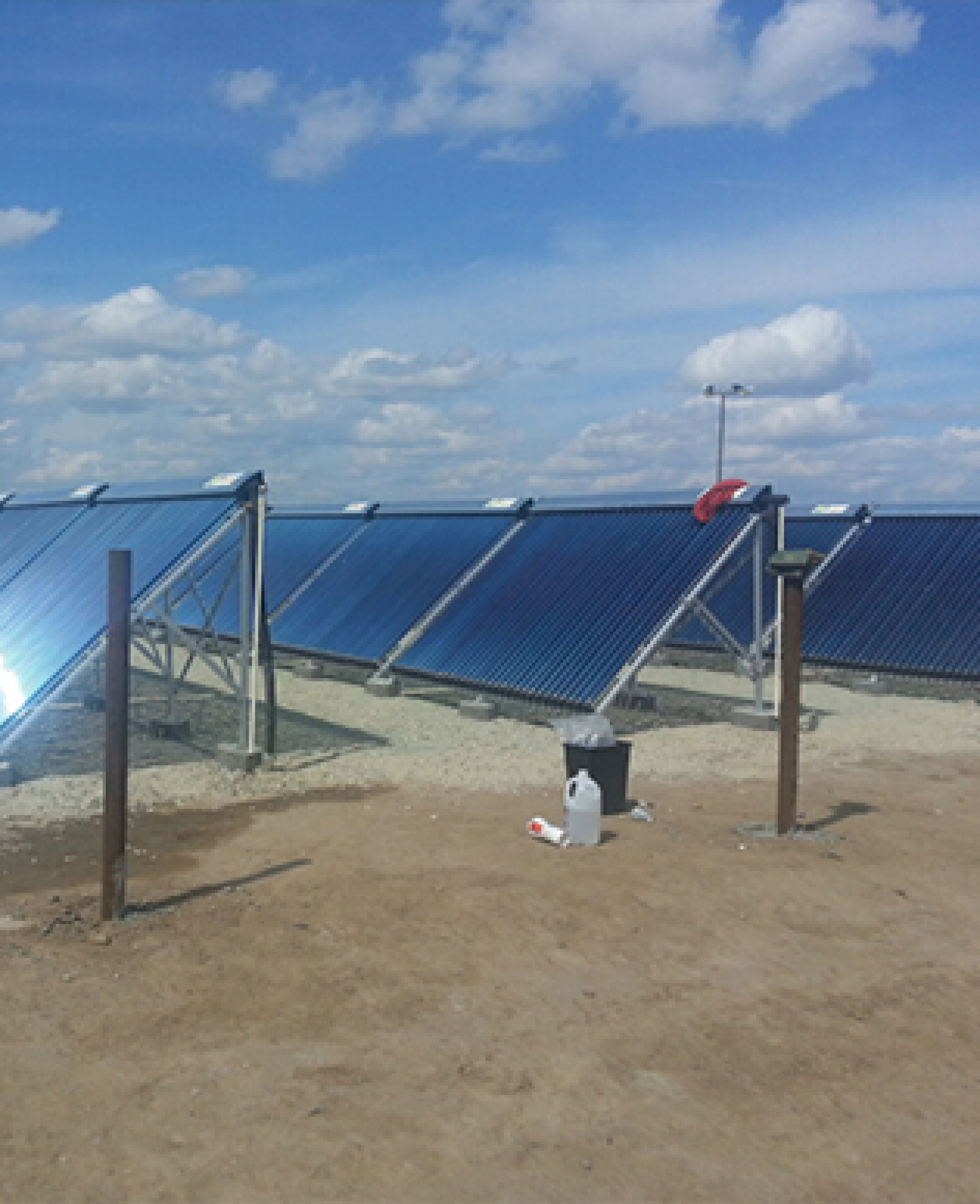

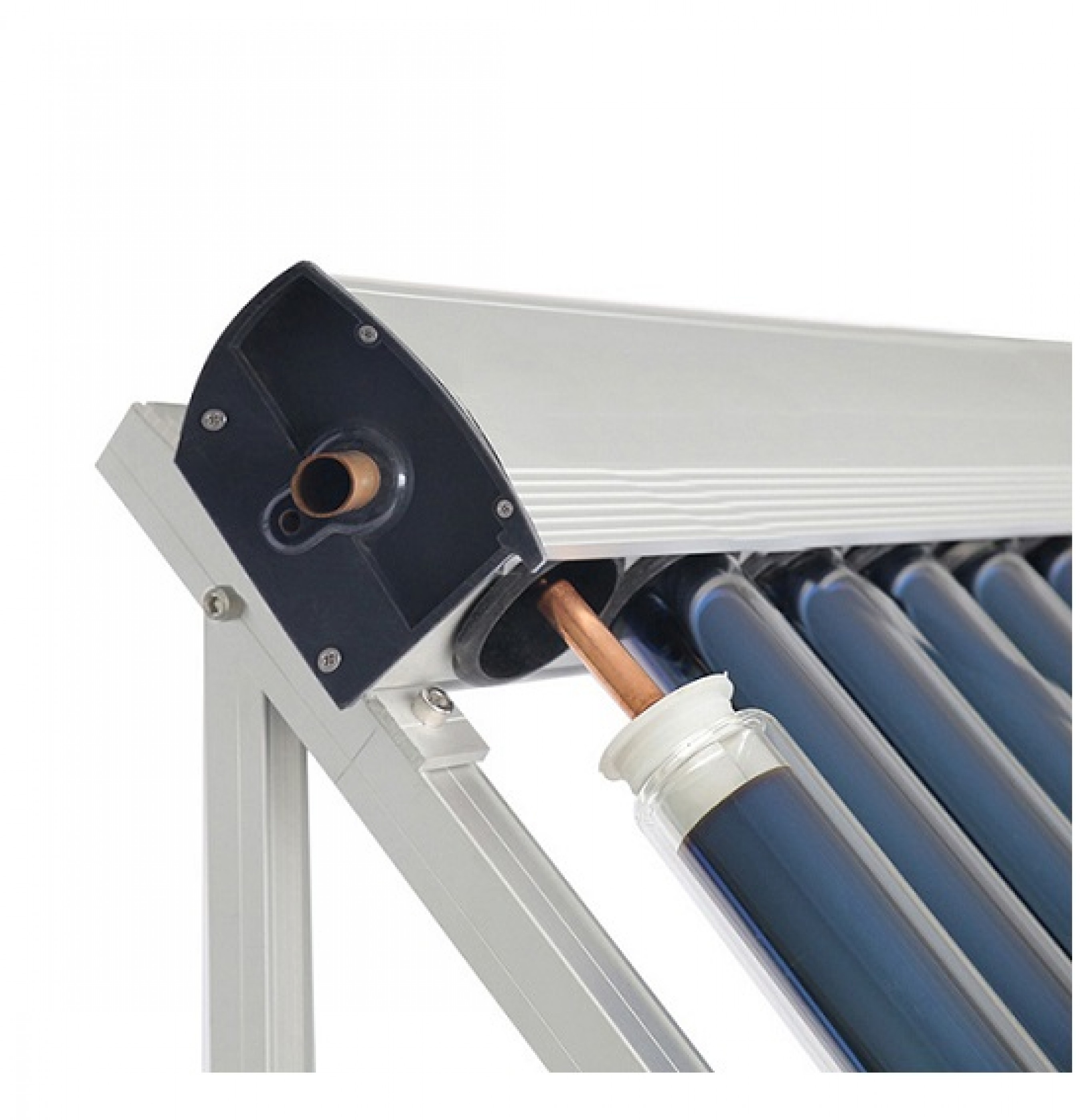

• The complex consists of a copper copper tube and a group of copper tubes inside the vacuum tubes, which transfer heat to the solar collector by means of a liquid inside the copper tubes. There is no water inside the vacuum tubes and it uses aluminum sheets to transfer heat between the wall of the vacuum tube and the copper tube inside the glass tube and heat is transferred upward inside the complex.
• It works in high pressure circuits.
The ideal design of the complex and the possibility of linking it with a number of complexes to secure the needs of hot water, whatever its size.
The inner body: made of red copper.
• The outer body: made of aluminum.
• Dimensions of glass tubes 58mm x 1.800mm.
• Holes 25 mm.
The maximum pressure: 12 bar.
Vacuum tube coating: ALN / AIN-SS / CU.
Heat pip: Anti-freeze> -35 ° C.
Inlet / outlet: 22 mm (3/4 ").
• Stand color: Silver.
|
models |
Vacuum tuber |
Condenser Ø (mm) |
Capacity (liter/Day/60c°) |
Effective collector area M2 |
Size (mm) |
|||
|
A |
B |
C |
D |
|||||
|
HCM 12-58/1800-02 |
Ø58*1800*12Pc |
Ø14 |
100 |
1.55 |
1070 |
2010 |
1005 |
125 |
|
HCM 15-58/1800-02 |
Ø58*1800*15Pc |
Ø14 |
150 |
1.95 |
1295 |
2010 |
1230 |
125 |
|
HCM 20-58/1800-02 |
Ø58*1800*20Pc |
Ø14 |
200 |
2.60 |
1670 |
2010 |
1605 |
125 |
|
HCM 30-58/1800-02 |
Ø58*1800*30Pc |
Ø14 |
300 |
3.91 |
2420 |
2010 |
2355 |
125 |
