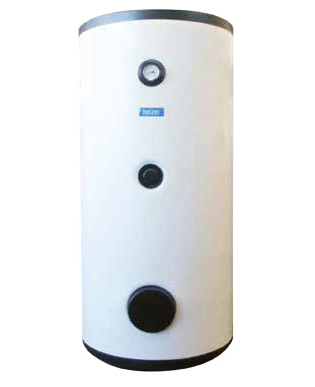

SPIRAL COIL DHW CALORIFIERS
High quality glass lined indirect cylinders with a high efficiency
fixed heating coil. Ideally designed for the storage and production
of domestic hot water.
Cylinder: glass-lined
Max. working pressure: 10 bar,
Max. storage temperature: 95°C
Internal lining: inorganic glass lining in accordance with DIN 4753.3
Heating coil: High efficiency and large surface spiral coil for connection
to a primary heating source.
Max. working pressure: 16 bar,
Max. working temperature: 95°C
Insulation: rigid polyurethane (70mm) encased with
a removable outer PVC jacket.
Standard accessories: Inspection flange, thermometer, probe
connection for the coil and safety valve. Adjustable support feet on
models up to 500 liters
On request: additional immersion heaters, from 2 to 12 kW, together
with a double safety thermostat.
Suitable for unvented/vented systems.
